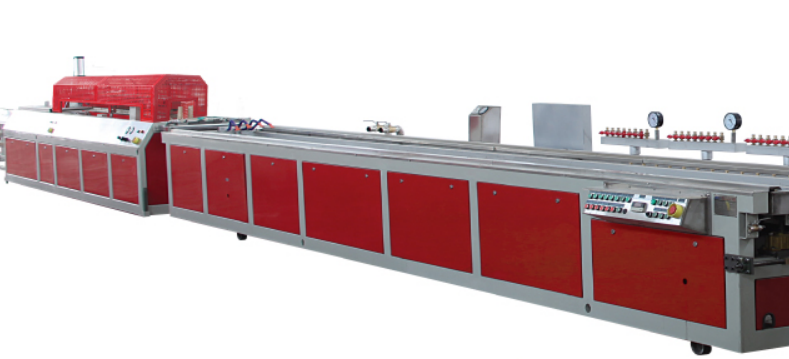

PV module frame pultrusion line

  Compared with traditional aluminium and metal PV frames, polyurethane PV frames have the following advantages:

 1, polyurethane composite material has excellent mechanical properties, its axial tensile strength reaches more than 7 times of the traditional aluminium alloy material.

  2, has a strong resistance to salt spray and chemical corrosion.

  3, has a high volume resistivity, photovoltaic modules encapsulated with polyurethane bezel greatly reduces the possibility of forming leakage circuits, which helps to reduce the generation of PID potential-induced attenuation phenomenon. The power generation efficiency of the panel is improved.

  4, polyurethane border can also be used in conjunction with water-based polyurethane coating, greatly increasing the weather resistance of the border, and very low VOC emissions.

  Equipment features:

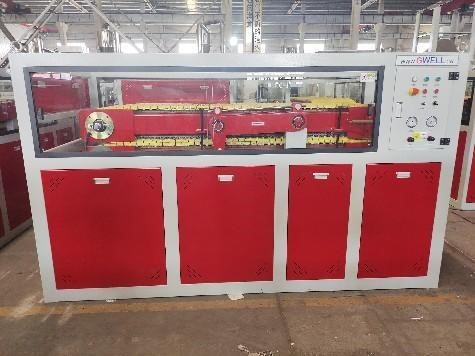

  1. Stepless adjustment of traction speed;

  2. Traction force touch screen display;

  3. With automatic alarm for oil temperature and oil filter blockage;

  4. Hydraulic cylinder seals are imported, and the power output of the pump unit is stable;

  5. The main electrical and hydraulic components adopt international famous brand, high sensitivity and low failure rate;

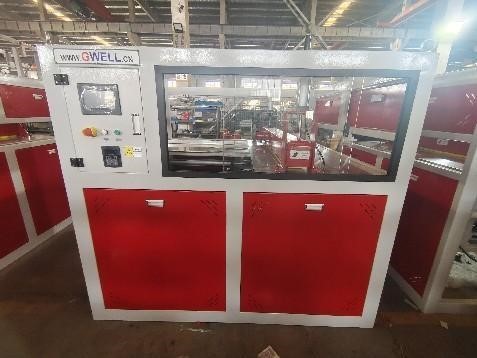

  6. Pneumatic up and down cutting, pneumatic compression, pneumatic tracking, cutting saw blade is toothless saw blade;

  7. Interactive HMI touch screen control, pultrusion speed, temperature, clamping force are displayed and controlled in the touch screen.

  Provide service:

  1. Send 1-2 technicians to the customised party to guide the installation and debugging of the equipment.

  2. The customised party will provide its own auxiliary facilities according to the foundation installation plan provided by the contracted party, and do the preliminary preparatory work for the equipment installation; the water, electricity and gas lines will be laid in the designated position according to the requirements of the installation plan, and all materials required for the production will be prepared.
